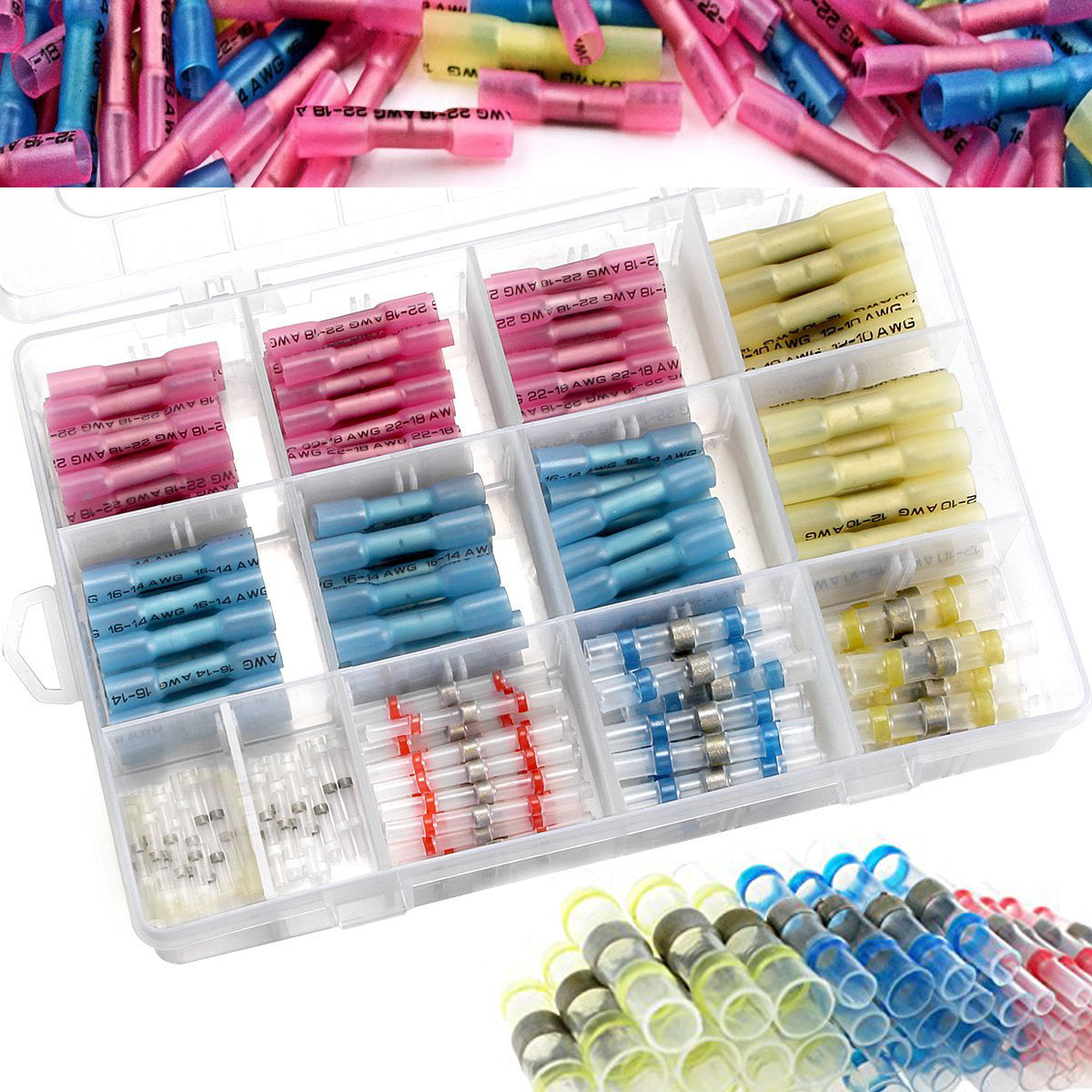

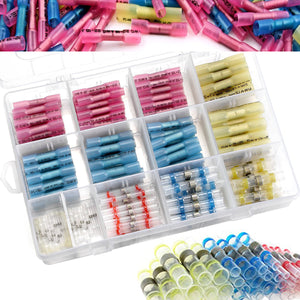

200 Pcs Solder Seal Butt Connectors & Heat Shrink Wire Terminals Kit 26-10 GA - #HSKIT-18330

  • $35.98



Part 1.

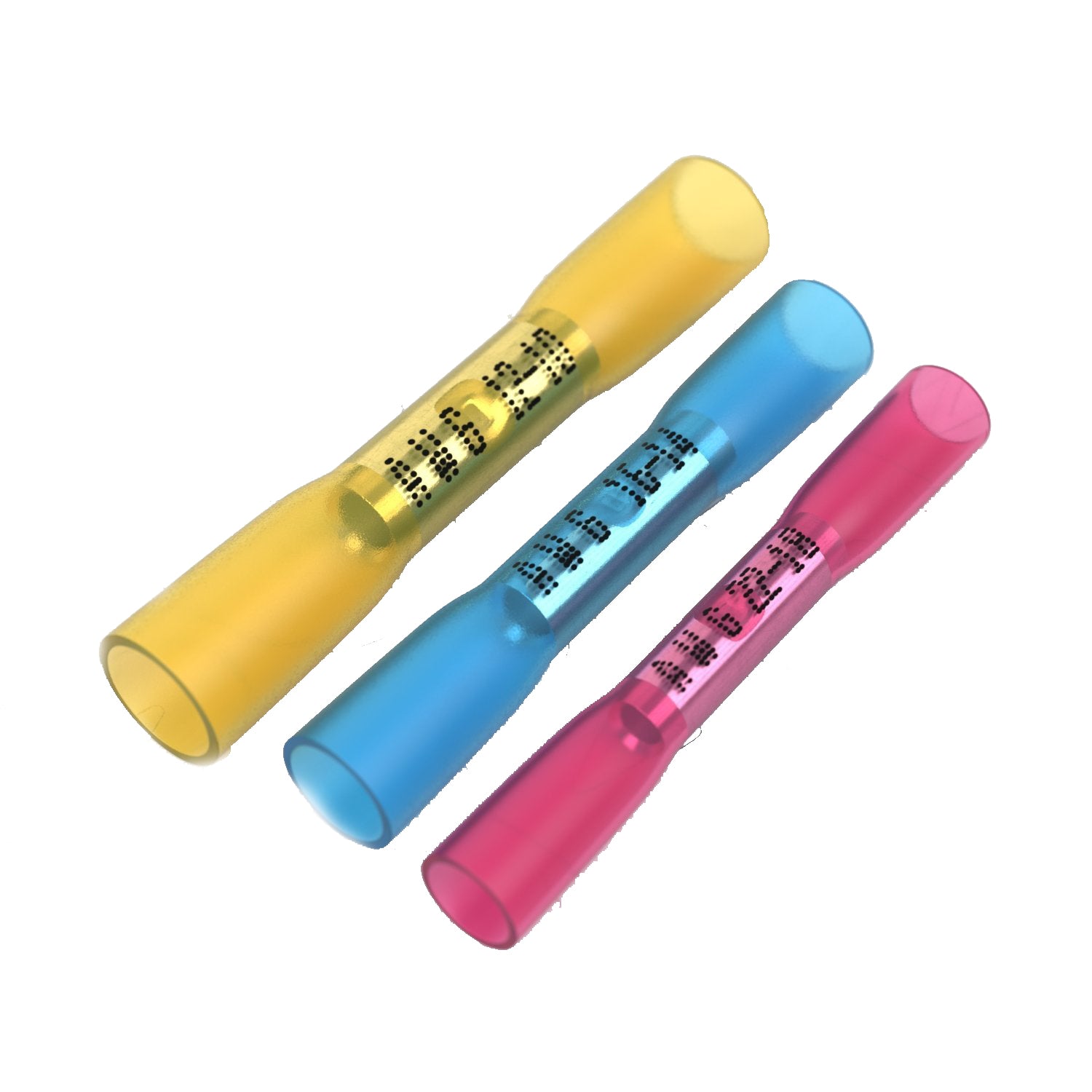

100pcs Heat Shrink Wire Terminals Kit Included:

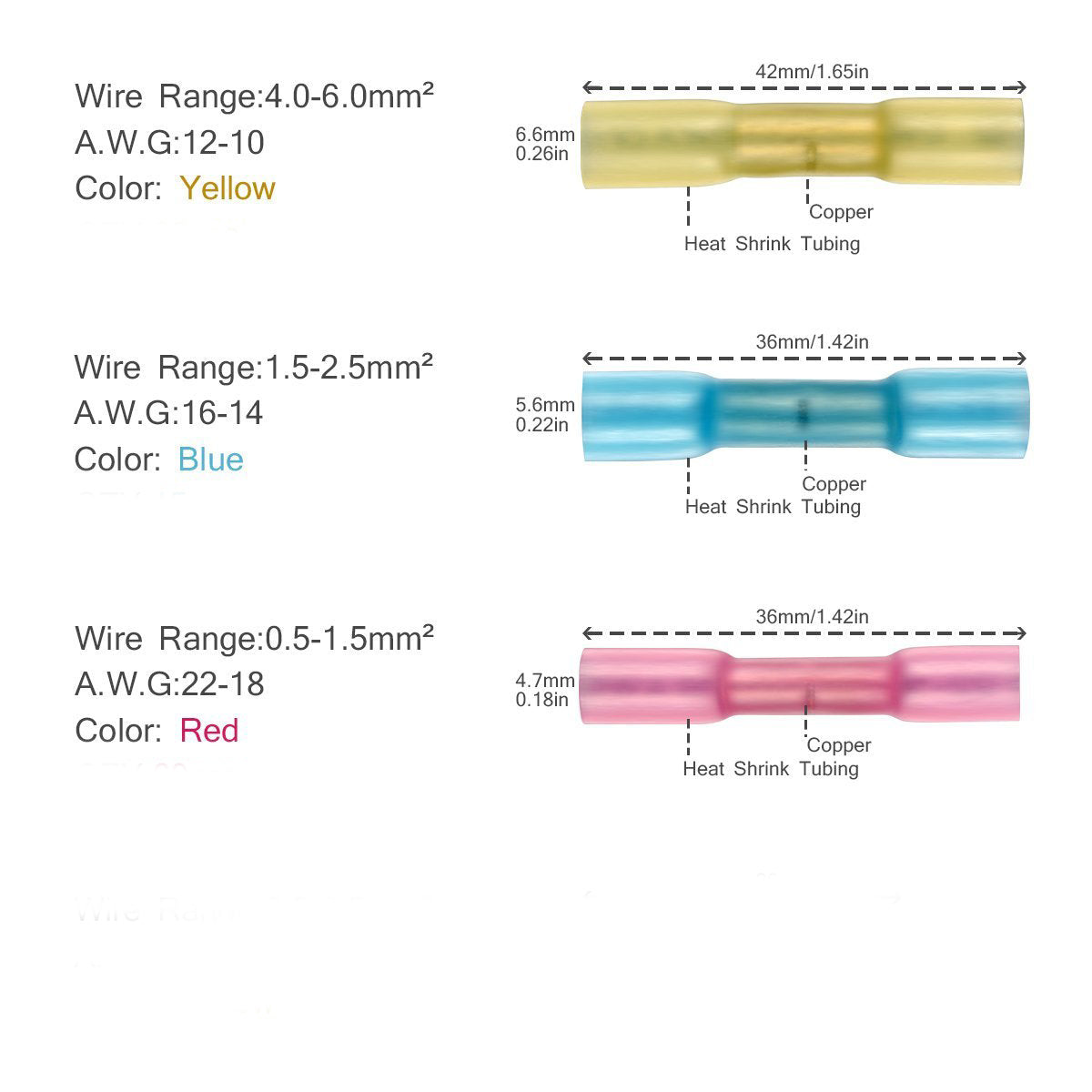

  • 40pcs x 22-18 AWG - HSC-1 Red
  • 30pcs x 16-14 AWG - HSC-2 Blue
  • 30pcs x 12-10 AWG - HSC-3 Yellow


    For best results, please use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal.



    • Shrinkage ratio 3:1
    • Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive in inside
    • Wire gauge imprint on connectors
    • Minimum shrink temperature: 80°C
    • No wire damage due to lower shrink temperature
    • Full recovery temperature: 130°C
    • Operating temperature: from -55°C to 125°C
    • Reusable case included


    1. Select heat shrink butt connector to suit wire size
    2. Strip insulation to 8mm and insert into splice barrel
    3. Crimp using the tool for pre-insulated connectors
    4. Apply heat to the butt connector until tubing recovers, and adhesive flows from connector ends
    5. For best results use a hot air gun and apply heat evenly until connector reduces in size, and the adhesive flows, filling gaps within the terminal


    Part 2.

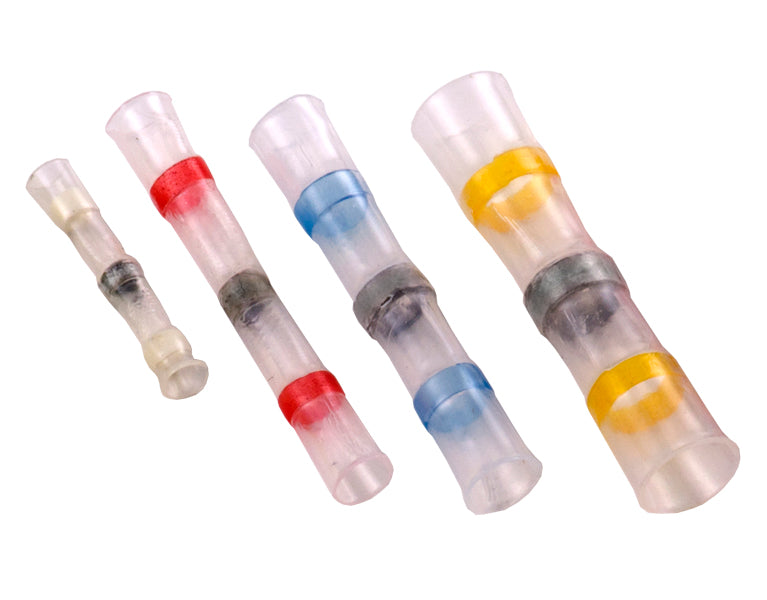

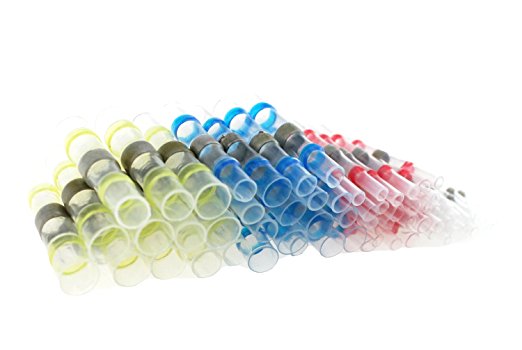

    100pcs Solder Seal Heat Shrink Butt Wire Connector Terminals Copper

    • An easy one step connection of wires, soldered, insulated and sealed
    • Can be ideal use in marine and automobile applications
    • Polyolefin tubing in outside and hot melt adhesive in inside
    • Solder and seal and with advanced waterproof function
    • Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation


    Insulation: PE

    Plating: Tin

    Terminal Body: Copper

    Color: Red, Blue, Yellow, White

    • 30pcs x Red Shrink Connectors: Diameter 3.0 mm, Cable cross-section 0.5-1.0mm2 22-18AWG

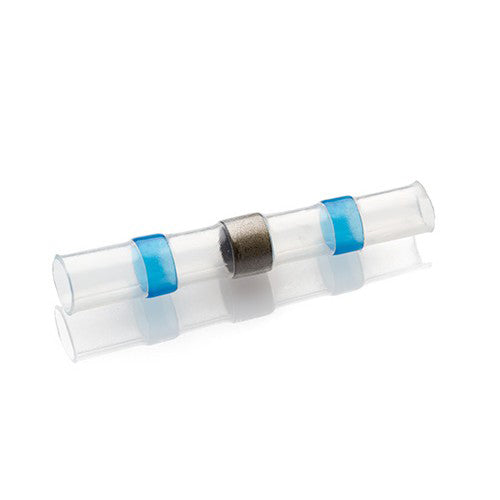

    • 30pcs x Blue Shrink Connectors: Diameter 5.0mm, Cable cross-section 1.5-2.5mm2 16-14AWG
    • 30pcs x Yellow Shrink Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0mm2 12-10AWG
    • 10pcs x White Shrink Connectors: Diameter 1.5 mm, Cable cross-section 0.25-0.34mm2 26-24AWG
