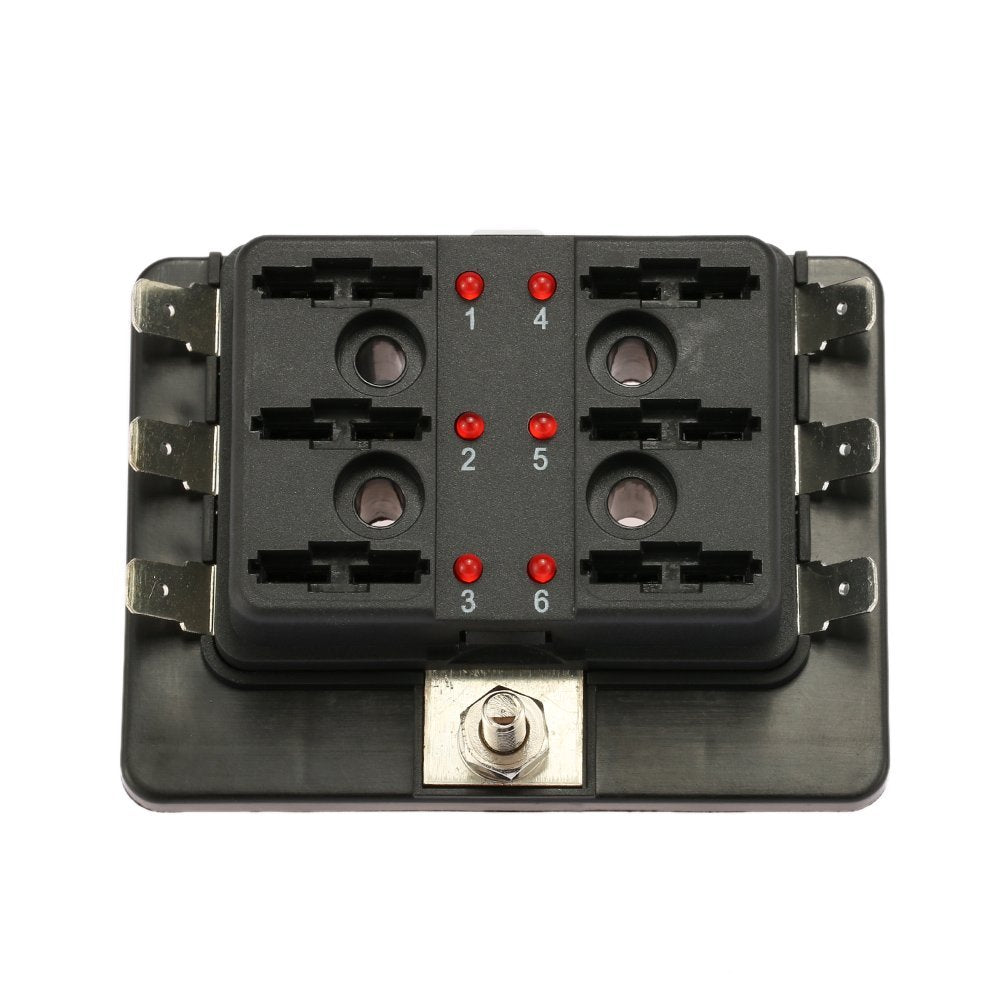

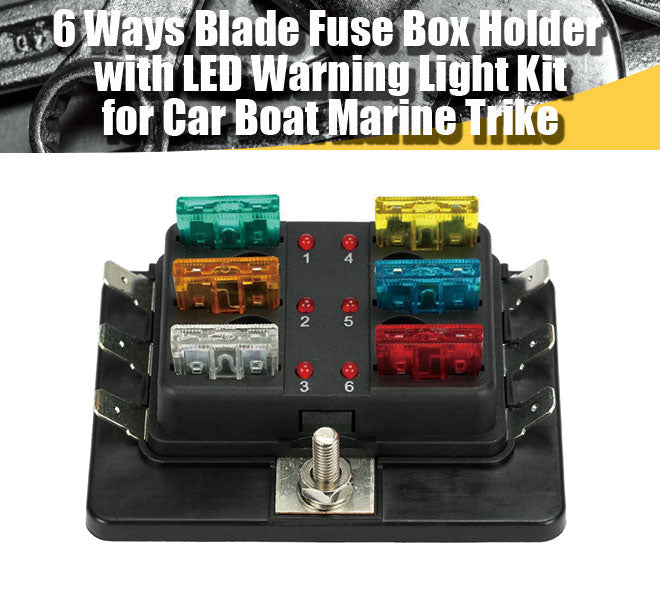

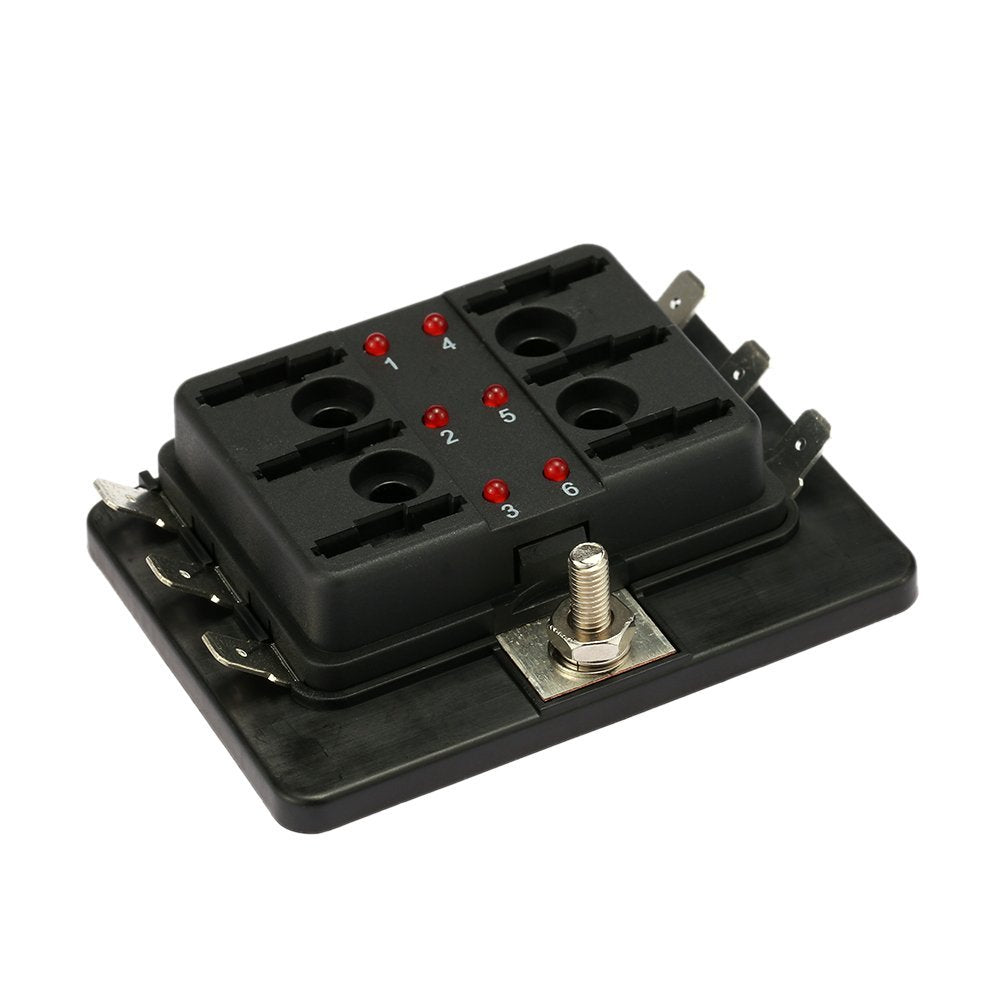

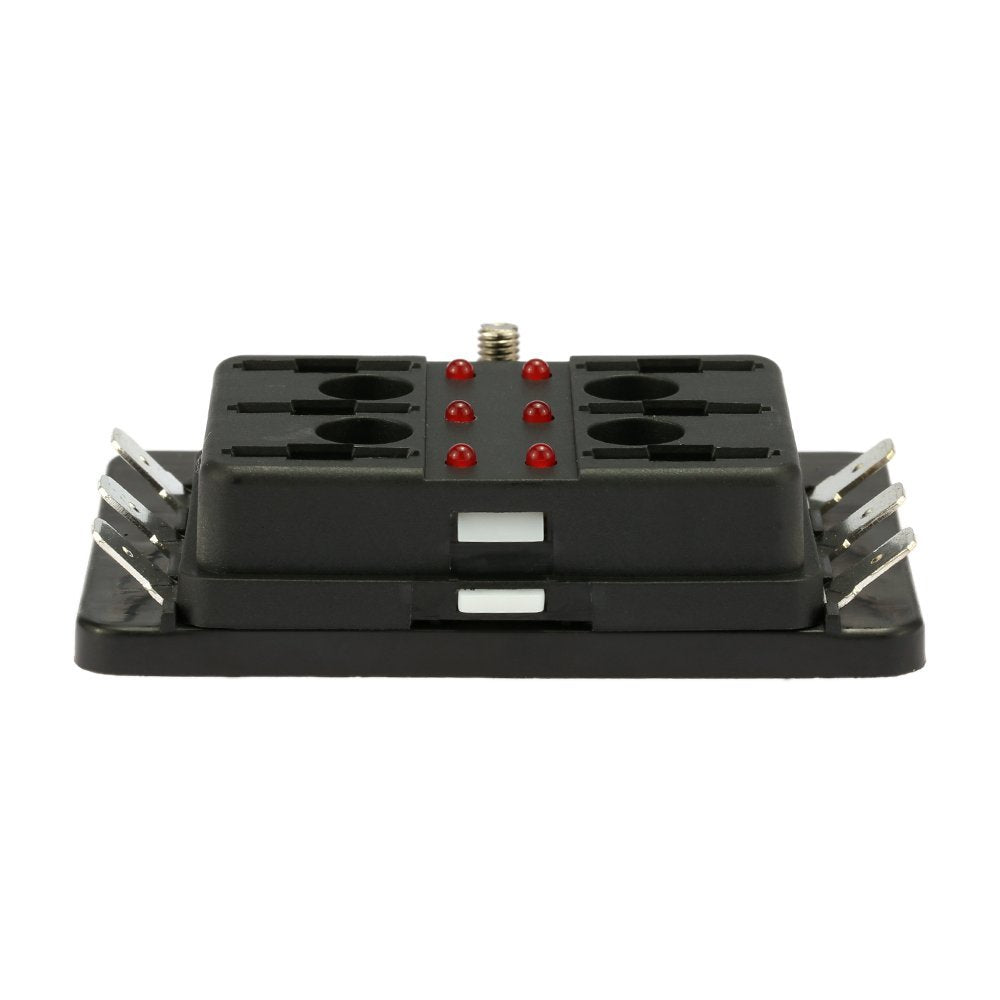

6 Way Blade Fuse Box Holder with LED Warning Light Kit for Car Boat Marine Trike 12V 24V - #FUSEO-70110
PARTS NUMBER: FUSEO-70110
- 6 way fuse box.
- With LED fuse blown indicator. If a fuse blows the red LED next to the problem fuse, illuminates allowing for fast and hassle free identification of a fault.
- Each fuse holder is numbered to make fuse installation and identification as easy as possible.
- 1 positive power input stud with side mounted spade connections.
- Can be secured via 4 pre molded holes.
- Transparent plastic cover with push latch system, easy to operate, splash and dust-proof design.
- Made by professional manufacturer, durable construction, quality assurance.
Specifications:
- Accepting fuse: Standard blade fuse (ATO / ATC)
- Quantity of circuits / fuse slots: 6
- Positive connection: M5 stud (5mm bolt)
- Output connections: Standard 6.3mm spade terminals
- Current rating per circuit / fuse: 30 amp (Max.)
- Current rating per box: 100 amp (Max.)
- Volt rating: 32 VDC (Max.)
- Dimension: approx. 85 * 60 * 35mm
- Package weight: 122g / 4.3oz
- Package weight: 84g / 3ozEngine mounted
Package list:
- 1 * Fuse Box Holder
